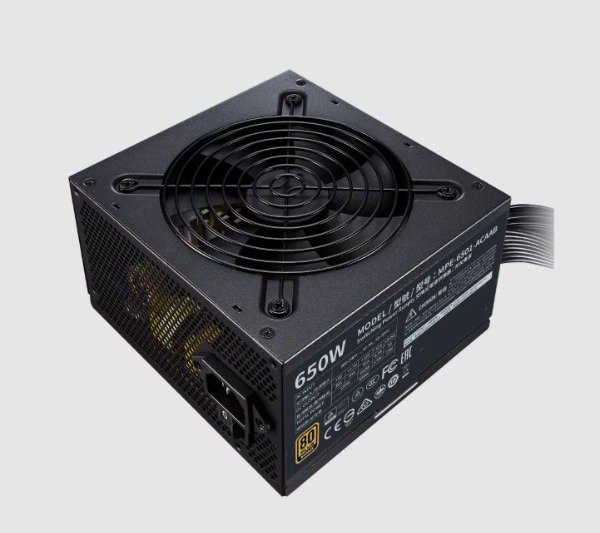

PRODUCT NAME: G Gold 650 V2

CODIGO: MPE-6502-ACAAG

PEAK POWER: 650W

FORM FACTOR: ATX 12V Ver. 3.1

MODULAR: Non Modular

80 PLUS RATING: 80 PLUS Gold

PFC: Active PFC

INPUT VOLTAGE: 100 - 240V

INPUT CURRENT: 10 - 5A

INPUT FREQUENCY: 50 - 60Hz

DIMENSIONES: 140 x 150 x 86mm

FAN SIZE: 120

FAN BEARING: HDB

FAN SPEED:

NOISE 20%:

NOISE 50%:

NOISE 100%:

EFFICIENCY: 85% = 90% @ Typical Load

ERP 2014 LOT 3: Yes

OPERATING TEMPERATURE: 0 ~ 40?

POWER GOOD SIGNAL: 100 - 150ms

HOLD UP TIME: = 16ms

MTBF: >100,000 hours @ 25? ambient

PROTECTIONS: UVP / OVP / OPP / OCP / OTP / SCP

REGULATORY: cTUVus,TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC

CONECTOR ATX 24 PINES: x1 = 1x (500mm)

CONECTOR EPS 4+4 PINES: x2 = 1x (550+120mm)

CONECTOR EPS 8 PINES:

CONECTOR SATA: x6 = 2x (400+150+150mm)

CONECTOR PERIPHERAL 4 PINES: x3 = 1x (400+150+150mm)

CONECTOR PCI-E 6+2 PINES: x4 = 2x (500+120mm)

AC INPUT: 100-240V~ 10 - 5A 50 - 60Hz
