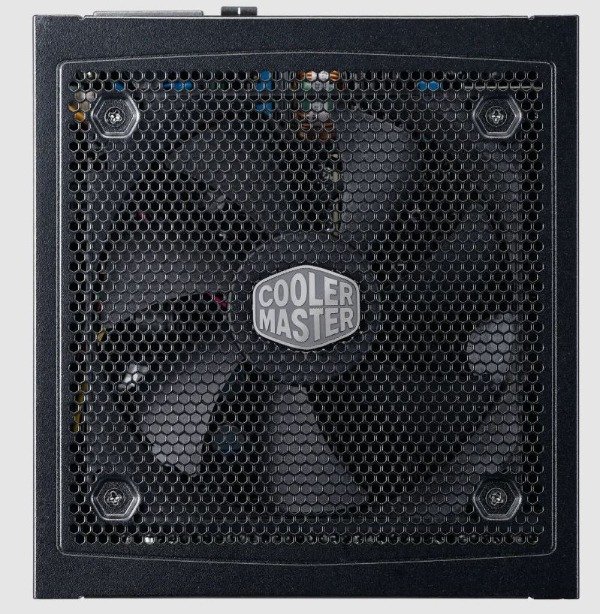

PRODUCT NAME: GX II Gold 850

CODIGO: MPX-8503-AFAG-2

PEAK POWER: 850w

FORM FACTOR: ATX 12V Ver. 3.0

MODULAR: Full Modular

80 PLUS: 80 PLUS Gold

PFC: Active PFC

INPUT VOLTAGE: 100-240V

INPUT CURRENT: 10 - 5A

INPUT FREQUENCY: 50 - 60Hz

DIMENSIONES: 160 x 150 x 86mm

FAN SIZE:120mm

FAN BEARING: HDB

FAN SPEED: 2500 rpm

EFFICIENCY: = 90% @ Typical Load

ERP 2014 LOT 3: Yes

OPERATING TEMPERATURE: 0 ~ 40?

POWER GOOD SIGNAL: 100-150 ms

HOLD UP TIME: = 16ms @80%Load

MTBF: >100,000 hours

PROTECTIONS: OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection

REGULATORY: cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on regions request.)

CONECTOR ATX 24 PINES: x1 = 1x (550mm)

CONECTOR EPS 4+4 PINES: x1 = 1x (600mm)

CONECTOR EPS 8 PINES: x1 = 1x (600mm)

CONECTOR SATA: x6 = 2x (500(s)+120(s)+120(s)+120(p)mm)

CONECTOR PERIPHERAL 4 PINES: x2 = 2x (500(s)+120(s)+120(s)+120(p)mm)

CONECTOR PCI-E 6+2 PINES: x4 = 2x (500+120mm)

CONECTOR 12VHPWR: x1 = 1x (650mm)

AC INPUT: 100-240V~ 10 - 5A 50 - 60Hz
