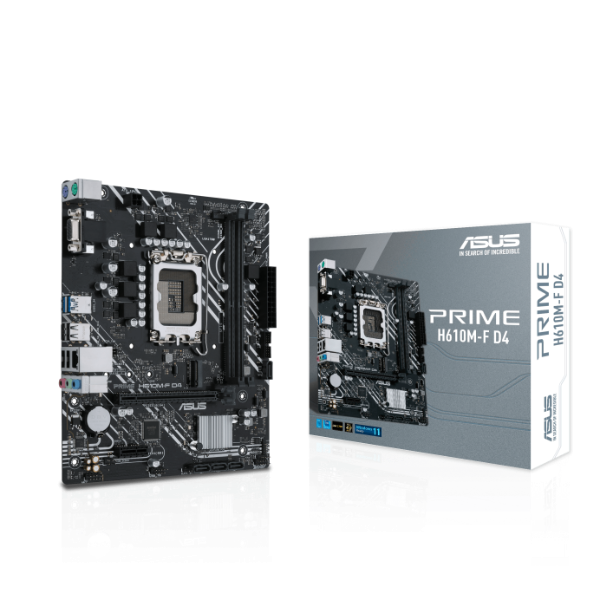

PRIME H610M-F D4 R2.0

CPU

Intel® Socket LGA1700 for Intel® Core 14th & 13th Gen Processors, Intel® Core 12th Gen, Pentium® Gold and Celeron® Processors*

Supports up to Intel® 65W CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® H610 Chipset

Memory

2 x DIMM slots, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual channel memory architecture

Supports Intel® Extreme Memory Profile (XMP) memory module

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

Graphics

1 x HDMITM port**

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel® Core Processors (14th & 13th & 12th Gen)

1 x PCIe 4.0 x16 slot

Intel® H610 Chipset

1 x PCIe 3.0 x1 slot

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports

Intel® H610 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

2 x SATA 6Gb/s ports

Ethernet

1 x Realtek 1Gb Ethernet

USB

Rear USB (Total 6 ports)

2 x USB 5Gbps ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 4 ports)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

2 x USB 5Gbps ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x HDMITM port

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

Internal I/O Connectors

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power Related

1 x 24-pin Main Power connector

1 x 4-pin +12V Power connector

Storage Related

1 x M.2 slot (Key M)

2 x SATA 6Gb/s ports

USB

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

1 x USB 2.0 header supports 2 additional USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Front Panel Audio header (F_AUDIO)

1 x Speaker header

1 x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage protection

- SafeSlot Core

- Stainless-steel back I/O

ASUS Q-Design

- Q-DIMM

- Q-Slot

- Q-LED Core

ASUS Thermal Solution

- Aluminum heatsink design

Software Features

ASUS Exclusive Software

Armoury Crate

AI Suite 3

- EPU

- DIGI+ VRM

- PC Cleaner

ASUS CPU-Z

Norton 360 for Deluxe (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O shield

1 x M.2 anchor

Documentation

1 x Quick start guide

Operating System

Windows® 11 , Windows® 10 64-bit

Form Factor

micro-ATX Form Factor

8.9 inch x 7.4 inch (22.6 cm x 18.8 cm )
